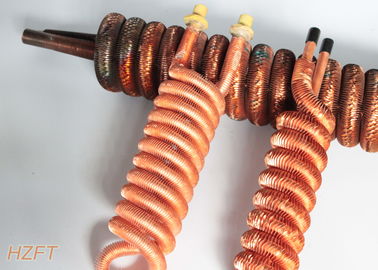

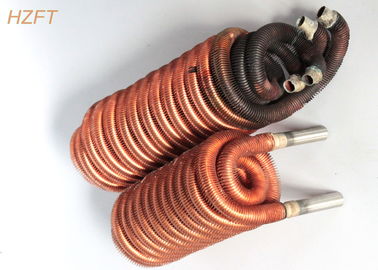

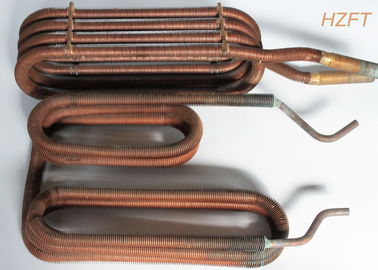

ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator

I'm Online Chat Now

ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator

China ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator supplier

Large Image :  ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator

Product Details:

Place of Origin: China
Brand Name: HZFT
Certification: ISO9001:2008
Model Number: M-11032.127075-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: negotiable
Packaging Details: Plywood Sea - Worthy Case or Pallet
Delivery Time: 1 - 30 Days
Payment Terms: L/C , T/T
Supply Ability: 2000 Meter / Day
Detailed Product Description
Material: C12000 / C12200 / C70600 / 1060 Outer Diameter: 19.05mm
Inner Diameter: 11.2mm Wall Thickness: 0.75mm
Fin Height: 3.15mm FPI: 11

Copper or Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator



Quick Details:



1. Tube based on roll forming process

2. High thermal conductivity and compact design

3. Save cost and assembling space due to higher efficiency

4. ISO 9001:2008 quality certified

5. Well sold in USA, Australia, Germany, etc.



Advantages:



1. Optimized heat exchange performance of raw material with extruding process

2. Compact design consuming less assembling space

3. Flexible for customized design after soft annealing

4. Copper is a hygienic and antimicrobial material for use in drink water systems

5. Tin plating for both inside and outside surface is possible, if requested

6. Easier to stock after surface treatment

7. Resistance to both vibration and corrosion

8. Cost saving from longer service life and less assembling space



Tube Number Code System



Take Tube Number M-11045.180100.00 as example

M

11

045

180

100

00

 M=Medium Height

 H=High

 L=Low

Minimum fins per Inch

Fin Height in 1/10 mm

Minimum Root Diameter in 1/10 mm

Root Wall-thickness in 1/100 mm

Code of Inner Surface

 00=plain

 01=Undulated

 02=Grooved



Description:



ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration EvaporatorISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator ISO Copper Nickel Fin Coil Heat Exchanger in Refrigeration Condenser / Refrigeration Evaporator



Process Flow:



1. Order raw material due to customers' requirements.

2. Inspection on raw material at arrival

3. Roll forming the fin tube, while monitoring the whole process / Extruding or finning process

4. Cut into required length

5. Inspection on specification of finned tube

6. If required, we provide de-fin process, soft annealing, bending and coiling, welding connectors

7. Clean procedure, pressure test and drying

8. Packing for delivery



Applications:



The finned tube coils or heat exchangers are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in heating of drink waters and as tankless water heaters, in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).
